Big Bamboo Type
Product Details:
Big Bamboo Type Price And Quantity
- 1000 INR
- As per requirement Unit
Big Bamboo Type Trade Information
- Cash Against Delivery (CAD), Cash on Delivery (COD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Paypal, Western Union, Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Days after Acceptance (DA), Cash in Advance (CID), Cheque, Cash Advance (CA)
- 1 Week
- Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia
- All India
Product Description

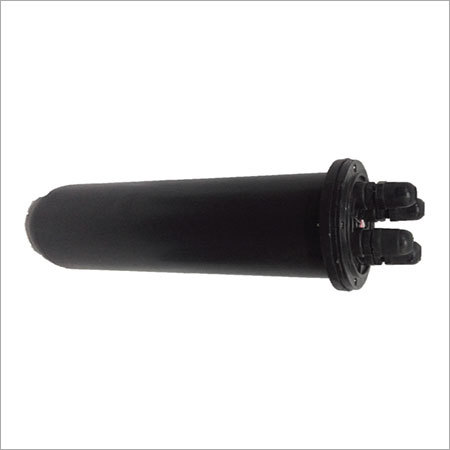

We are offering the big bamboo type that is suitable for use in various commercial and industrial uses. They are easy to use and are very lightweight and portable. The offered product is used for connecting two or more optical fibres and is very effective. The closure is buried inside the earth (Main Holes) or hanged on to a pole in case of Arial cable. The Big Bamboo type is very strong and durable and is suitable for all types of cables. It is water and moisture proof.
Joint closure is used to connect two or more optical fiber cable. Fiber from different cables are fusion spliced and kept safely inside the splice organizer provide inside the OFC joint closure. The closure is buried inside the earth (Main Holes) or hanged on to a pole in case
Technical Specification
Optical fiber cable joint closure mainly consists of a moulded shell pipe (pipe shaped with one end closed) with an end cap having parallel ports and oval port for the cable entries / exit. The end cap contains a base plate / main plate which hold the sheath clamp, FRP holder and tray. Cable is entered from the top of end cap through entry ports provided on end cap and is gripped in stealth clamps.
Technical Specifications
| Construction Type | Molded pipe shape with one end close and one end open cable |
| Outer Enclosure Material | HDPE |
| Colour | Black |
| Production Standard | IP55 |
| Physical Dimension | Length (490 mm), Max. Dia. (160 mm) |
| No. of round port | 3 |
| Maximum Capacity | 48 Fibers Joint |
| Maximum capacity of each tray | 12F |
| No. of tray in 12F/24F | 2 Nos. |
| No. of tray in 48F | 4 Nos. |
Applications
- Underground, Main holes, Buried, Airial
- Wall to pole mounted
Features
- Suitable for cable up to 96 fiber
- Suitable for all type of OFC cable
- Multi entry joint closure
- Available for straight/branch joint
- Perfectly water and moisture proof
